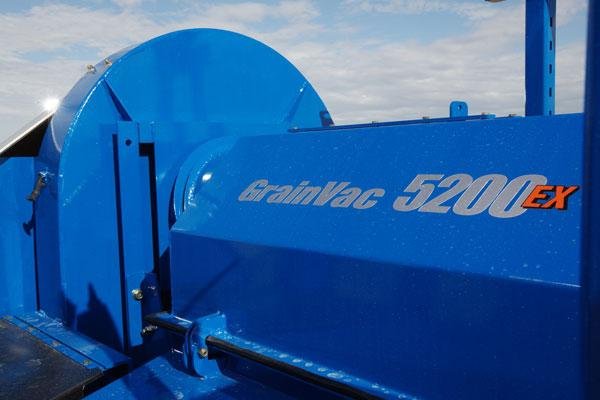

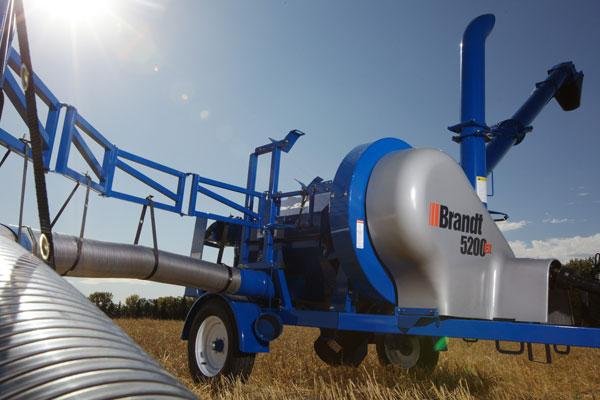

Brandt Grain Vac 5200Ex

Brandt's GrainVac technology provides high capacity & high efficiency with lower horsepower requirements. A low-cost, easy to maintain solution for cleaning out the bin
GrainVacs Capacity Transport Height Auger Diameter
5200EX 130tonnes/hr 85.5 in 10 in
Features

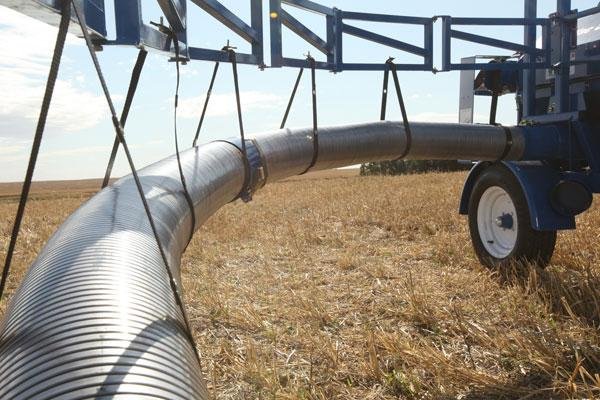

Low Profile Design
A low profile design allows you to see the truck box from inside the grain bin. This eliminates getting in and out of the bin to monitor load level. Also, the efficient design of the Hose Tree allows quick, easy access to hoses at the bin site. The quick clamps provide fast, convenient hose storage.
Low Horsepower Requirement
Provides maximum capacity with only 70 HP to cut fuel costs and lower the cost of grain handling. Brandt’s unique Air Throttle eliminates power surges which can occur when the GrainVac is moving air only. This reduces drive-line strain and fuel costs during clean up, or while moving the hose.
Easy to use and Maintain
Hydraulic folding unload auger is effortlessly operated from the tractor cab, and can be folded or unfolded while in position at the bin. A new "grease bank" allows servicing of all bottom bearings from one easy access side mounted point. An electronic tachometer/hour meter ensures optimum PTO speed, and regular maintenance intervals while a standard gas shock assist provides easy access to the GrainVac body.
Fully Adjustable Bin Snake
maintain the straightest possible airflow by raising or lowering hoses to retain the maximum grain capacity over long distances. The gear jack supported bin snake significantly reduces weight and increases maneuverability of the steel hose while cleaning up inside the bin resulting in reduced operator fatigue.
Air Diffuser
The air diffuser allows air to efficiently pass through while preventing grain from escaping through the exhaust. The Air Diffuser is easily accessible to inspect and clean and it is not affected by snow or ice.
Drive Line
A 1 to 1:5 ratio gearbox allows the use of larger drive sprockets, which increase the life of the drive chain. An easily accessible shear pin saves the gearbox from excessive stress.
Belt Drive System
The belt drive system is a 4-groove, high torque belt. A Lightweight, hinged fiberglass fan shield provides easy access.
Full Flow Steel Exhaust
The full flow 8 inch steel exhaust improves airstream efficiency. It is able to rotate 360 degrees to direct debris away from the operator and hinges downward for transport.
Clean Up Shovel
Efficiently cleans grain out of the bin without creating unwanted dust or safety concerns associated with bin sweeps. It is easy to manoeuvre while keeping the shovel in the grain.
GrainVac Pile Driver
Make clean-up quick with the Brandt GrainVac Pile Driver - the fast, easy way to move a pile of grain. The Pile Driver works like a bin sweep to pull grain steadily up to the MaxFlo nozzle. By using a hydraulically driven "sweep flight" to bring the pile to the Grain vac, two hydraulic cylinders can adjust the height and the angle of the Pile Driver to adapt to the contour of the ground, as well as the condition of the pile.
Available Attachments
Bin Snake- This feature takes the back work out of cleaning right to the bottom of bins or piles. It easily adjusts to fit into most bin doors.
Bolt-on Chrome End Flights- 18" pieces of Chromed flight which fit over the regular flight ends to extend life of the GrainVac in heavily worn areas.
Exhaust Dust Hose Kit- 25’ of 8" diameter Hose with a solid end tube and storage bracket.
45 Degree Suction Elbow
90 Degree Suction Elbow
Lower Auger Tube Extension- for use when the long discharge tube is not required.
Installs without removing the center and upper discharge.
Sunflower Kit
Pile Driver
Additional Hose:
7"x 3.5’ Stainless Steel Flex Hose
7" x 7’ Stainless Steel Flex Hose
7" x 7’ Aluminum Rigid Tube
7" x 7’ Durathane Corrugated Rubber Hose
